DLIFT-N1000G1
Categories: Elevator solutions
Overview:

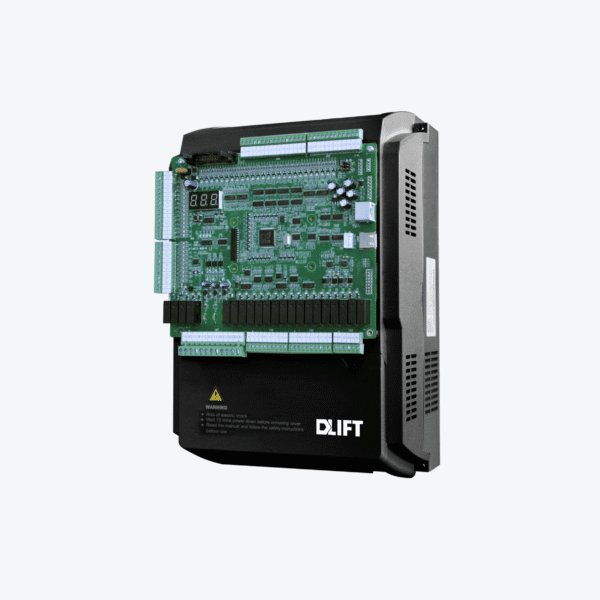

N1000G1 is DLIFT’s optimized integrated controller solution ≤ 1.75 m/sec. It is ideal for standard lifts and modernization projects where budget, simplicity, and reliability are crucial. The package delivers smooth ride performance, essential safety functions, and quick setup through predefined elevator parameter groups. With standard duplex (two‑car) CANbus control, flexible door modes, and fireman operation, N1000G1 provides the core features installers need without unnecessary complexity.
Features & Benefits
Features & Benefits
- Value‑focused integration: Parallel controller and drive in one unit to cut wiring time and panel size.
- Standard Floors capacity: 8 floors Full collective, 13 floors Down collective.
- Duplex/group capability: Built‑in CANbus communication for two‑car control.
- Multiple door modes: Manual, semi‑automatic, and automatic door control built in.
- Rescue modes: UPS/ARD interface on 220 V single‑phase input with automatic light‑load search.
- Protection & reliability: Overvoltage, overcurrent, and thermal protections as standard.
- Flexible I/O: Configurable digital/analog I/O for brake, door, and safety circuits.
- Maintenance tools: Fault logs, event history.
Technical Specs
| Parameter | Specification |
| Input Voltage | 3phase, 380–480 V AC; 3phase, 220 V AC (±10%) |
| Power Range | 5.5–22 kW |
| Control Modes | Closed-loop vector |
| Encoder Types | Incremental and Sin/Cos, Sin/Cos Endat |
| Motor Types | Asynchronous induction motors (close loop) |
| Rated Output Frequency | 0–500 Hz (configurable) |
| Overload Capacity | 150% for 60 s |
| Communication | Modbus RTU standard; CANbus (duplex); optional fieldbus cards |
| Ambient Temperature | −10 to +45 °C |
| Enclosure Rating | IP20 standard |
| EMC Compliance | IEC 61800‑3 (category to be confirmed) |
| ARD Interface | External ARD/UPS supported via interface terminals |
