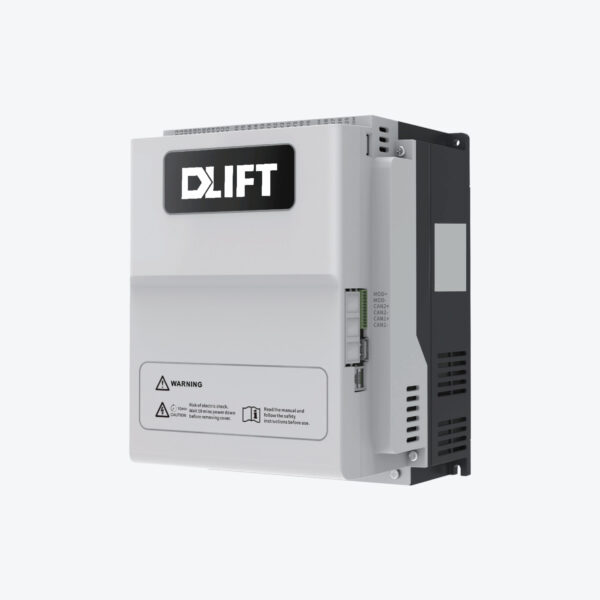

DLIFT-N1000G2
Categories: Elevator solutions
Overview
N1000G2 is DLIFT’s premium integrated elevator controller solution ≤ 1.75 m/sec. It targets small to medium lifts that require compact hardware, high ride comfort, and rapid commissioning. The unit combines traction drive control, safety logic, and group communication in one enclosure to minimize wiring and panel footprint. Support for both synchronous (gearless PM) and asynchronous (geared) machines, along with static auto‑tuning and anti‑rollback functions, ensures smooth operation across a wide range of applications. Built‑in UPS/ARD interfaces, Modbus RTU communications, and energy‑saving features round out a solution optimized for modernization and new installations alike.
Features & Benefits
Features & Benefits
- True all‑in‑one design: Integrated parallel controller and inverter reduce cabinet space and wiring.
- Supports PM & induction motors: Static auto‑tuning for both machine types; anti‑rollback without external load cell on gearless systems.
- Fast commissioning wizard: Step‑by‑step setup with predefined elevator macros and parameter groups.
- Group capability: support group of elevators.
- Standard Floors capacity: Standard 8 floors (full collective), 12 floors (down collective).
- Communication ready: Standard Modbus RTU (RS‑485) and CANbus for duplex/group control.
- Rescue & safety features: UPS/ARD interface, light‑load search, fireman mode, and built‑in STO SIL3.
- Flexible I/O: Configurable digital/analog points for doors, brakes, and safety circuits.
- Global voltage options: Compatible with common three‑phase supplies; single‑phase startup supported.
- Diagnostics & logs: Fault history, event records.
Technical Specs:
| Parameter | Specification |
| Input Voltage | 3Ø 380–480 V AC (±10%); single‑phase 220–480 V startup supported |
| Power Range | 5.5–3.7 kW |
| Control Modes | Closed-loop vector |
| Encoder Types | Incremental (TTL/HTL), Sin/Cos, absolute (EnDat/SSI—confirm models) |
| Motor Types | Asynchronous induction & synchronous PM (Close Loop) |
| Rated Output Frequency | 0–2000 Hz (configurable) |
| Overload Capacity | 150% for 60 s; 200% for 3 s |
| No Of Floor | 8 floors – full collective; 12 floors – down collective |
| Communication | Modbus RTU, CANbus duplex |
| Safety Functions | STO up to SIL3 |
| Ambient Temperature | −10 to +45 °C (derate above 40 °C) |
| Enclosure Rating | IP20 standard; higher IP with suitable cabinet |
| EMC Compliance | IEC 61800‑3 (Category C3/C2—confirm per model) |
| ARD/UPS Interface | Supported (internal interface terminals) |
