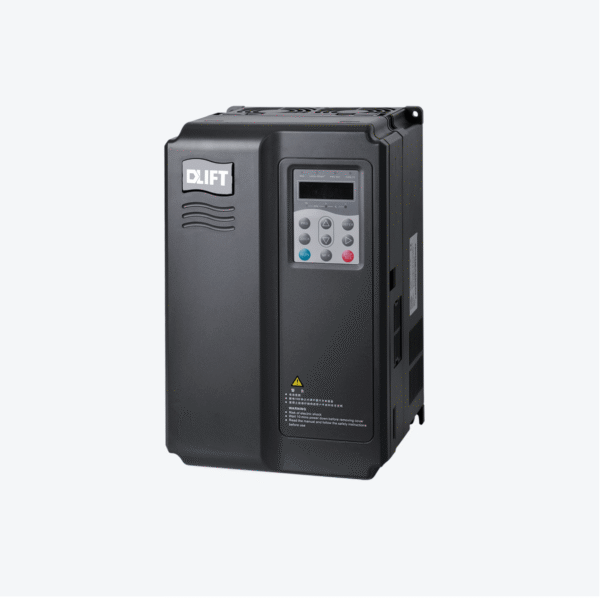

DLIFT-V320
Categories: Elevator solutions
Overview
V320 is DLIFT’s versatile elevator drive. It is ideal for modernization projects that use a separate elevator controller, and it has high‑performance motor control. V320 delivers smooth ride comfort and stable speed regulation across varying load conditions. It supports multiple encoder feedback types for both induction and PM motors and integrates easily with third‑party controllers via Modbus RTU or optional fieldbus cards. Energy‑saving options and built‑in protection functions enhance reliability and reduce long‑term operating costs.
Features & Benefits
Features & Benefits
- Closed-loop vector performance: Consistent ride quality with precise torque and speed regulation.
- Controller-agnostic integration: Works with external elevator controllers or PLC-based systems.
- Encoder versatility: Incremental, Sin/Cos, Sin/Cos Endat, and absolute feedback options available.
- Anti-rollback & pre-torque functions: Enhanced comfort for PMSM gearless and geared machines.
- Programmable I/O: Flexible digital/analog inputs and outputs to match site requirements.
- Removable cooling fan: Simplifies maintenance and extends product life.
- Communication-ready: Modbus RTU standard; optional CANopen/PROFIBUS/PROFINET interfaces.
- Diagnostic tools: Real-time monitoring, event logs, and fault history for faster troubleshooting.
Technical Specs
| Parameter | Specification |
| Input Voltage | 3Ø 323–528 V AC (±10%) |
| Power Range | 5.5–75 kW |
| Control Modes | closed-loop vector |
| Encoder Types | Incremental (TTL/HTL), Sin/Cos, absolute (via option cards) |
| Motor Types | Asynchronous induction & synchronous PM(Close loop) |
| Rated Output Frequency | 0–600 Hz (configurable) |
| Overload Capacity | 150% for 60 s, 180% for 10 s (typical) |
| Comms Protocols | Modbus RTU; optional CANopen/PROFIBUS/PROFINET |
| Safety Functions | STO option (SIL2/PL d—confirm model certification) |
| Ambient Temp | −10 to +50 °C (derating above 40 °C) |
| Enclosure Rating | IP20 (standard), higher ratings in suitable cabinets |
| EMC Compliance | IEC 61800-3 Category C3/C2 (model dependent) |
| ARD /UPS/60 VDC | Supported |
